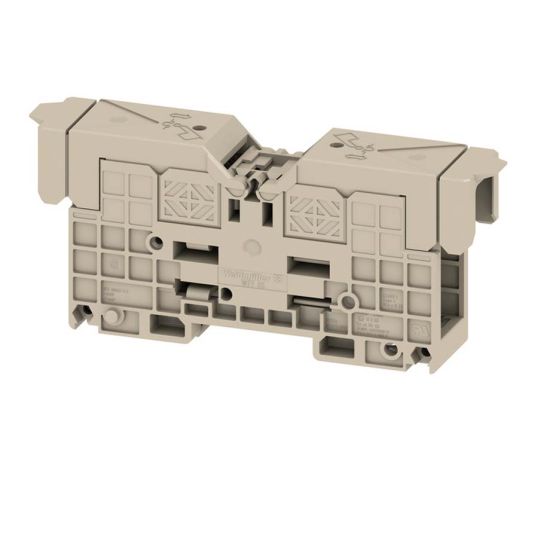

Weidmuller Klippon Feed-Through Terminal WFF 35/AH Bolt-Type Screw Terminal 35mm 1000V 125A Dark Beige
Loading...
Description
Feed Through Terminal Block, 35 mm, 1000 Volt, 125 Amp, 3-6 Nm Tightening Torque, 2 Connection Points, 1 Level, Snap In Mounting, Wemid Insulation, Beige, -50 to 120 deg C, UL94 V0 Flammability, 107 mm Height, 27 mm Width, 51 mm Depth
Key Specifications
| Barcode (EAN-13) |
4008190139148
|
|---|---|
| SKU |
WEI1029300000
|
| Brand |
Weidmuller
|
| Product Type |
Termninal Blocks
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 5 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 1029300000 |
| Colour | Beige |
| Conductor Size | 35mm |
| Current Rating | 125 Amp |
| Depth | 51 mm |
| Height | 107 mm |
| Flammability | UL94 V0 |
| Insulation Material | Wemid |
| Mounting Method | Snap In |
| Number of Connection Points | 2 |
| Number of Levels | 1 |
| Temperature | -50 to 120 deg C |
| Voltage Rating | 1000 Volt |
| Tightening Torque | 3-6 Nm |
| Width | 27 mm |
