Std Pack Size
1
OUR P/N:
TEELC1-D40008N7

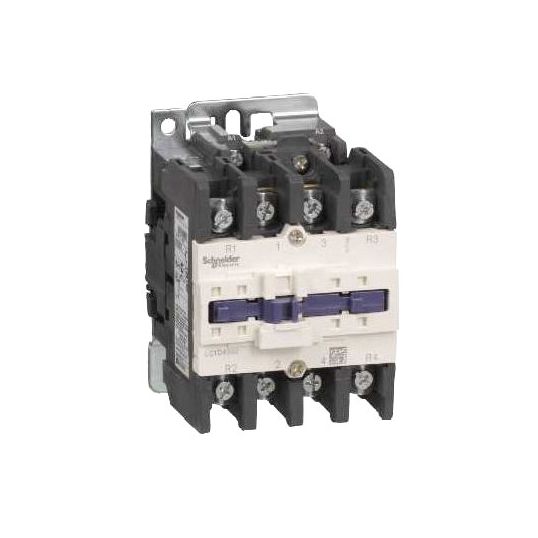

Contactor General Purpose AC Operated, 415 Volt AC, AC3 Rating (Amps): 40, AC1 Rating (Amps): 60, 690 Volt AC, 300 Volt DC, 4 Pole, Operating Time: 12-22 ms Closing, 4-19 ms Opening, Screw Clamp, DIN Rail/Plate Mount, IP20, -40 to 60 deg C, 127 mm Height, 85 mm Width, 125 mm Depth
Additional Information
| Brand | Schneider |
|---|---|
| Range Name | TeSys Model D |
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | LC1D40008N7 |
| AC1 Rating (Amps) | 60 Amp AC1 |
| AC3 Rating (Amps) | 40 Amp AC3 |
| Contact Voltage | 690 Volt AC/300 Volt DC |
| Height | 127 mm |
| IP Rating | IP20 |
| Depth | 125 mm |
| Number Of Poles | 4 Pole |
| Mounting Method | DIN Rail/Plate |
| Operating Coil Voltage | 415 Volt AC |
| Operating Time | 12-22 ms Closing/4-19 ms Opening |
| Temperature | -40 to 60 deg C |
| Product Type | Contactors General |
| Width | 85 mm |
| Terminal Connection | Screw Clamp |
