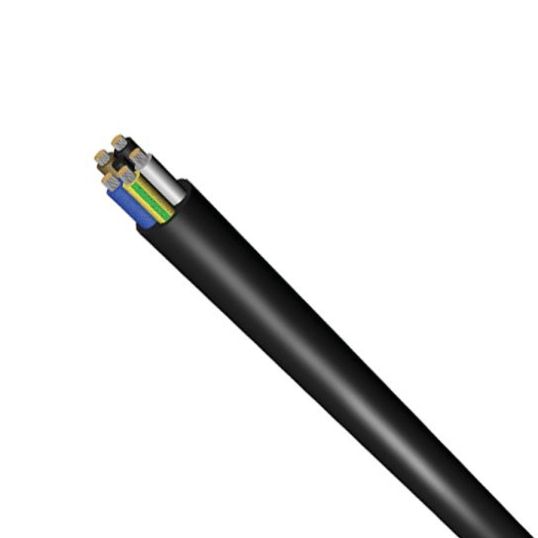

Ralos Flexible Power Cable 3C 1mm EPR CPE Black 0.6-1kVAC/0.9-1.5kVDC Class 5 Tinned Copper 10mm 30/40mm 0.8mm 1.5mm

$Ralos\Ralos_RB4G1.jpg$

Description

Flexible Power Cable, 1 mm Conductor, Class 5 Tinned Copper Conductor, 0.6-1 kV AC, 0.9-1.5 kV DC, 3 Core + Earth, 10 mm Overall Diameter, Fixed 30 mm-Flexible 40 mm Bend Radius, 0.8 mm Insulation Thickness, 1.5 mm Sheath Thickness, Broen, Black, Grey, Green-Yellow Core, EPR Insulation, CPE Sheath

Key Specifications

SKU	RALRB4G1
Brand	Ralos
Range Name	H07RN-F

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Submersible to 500 mtr UV-resistant Flame-retardant Oil-resistant Tinned conductors Saltwater resistant
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	RB4G1
Bend Radius	Fixed 30 mm-Flexible 40 mm
Conductor Size	1 mm
Conductor Type	Class 5 Tinned Copper
Core Colours	Broen / Black / Grey / Green-Yellow
Insulation Material	EPR
Insulation Thickness	0.8 mm
Number of Cores	3 Core + Earth
Overall Diameter	10 mm
Sheath Colour	Black
Sheath Material	CPE
Sheath Thickness	1.5 mm
Standards	AS / NZS 5000.1
Temperature	-40 to 90 deg C
Voltage	0.6-1 kV AC / 0.9-1.5 kV DC
