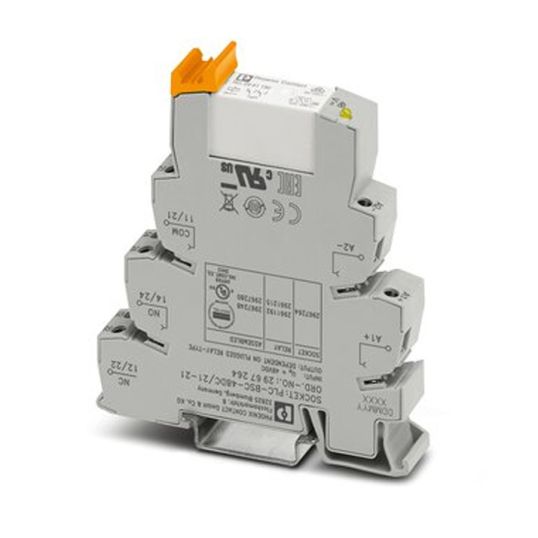

Phoenix Contact Interface Relay Module 48V 20mA
Loading...
Description
PLC-Interface, consisting of basic terminal block PLC-BSC.../21 with screw connection and plug-in miniature relay with power contact, for assembly on DIN rail NS 35/7,5, 2 changeover contacts, input voltage 48 Volt DC.
Key Specifications
| SKU |
PHO2967248
|
|---|---|
| Brand |
Phoenix Contact
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 10 |
|---|---|
| UNSPSC Class | 32151700 |
| UOM | EA |
| Vendor Product | 2967248 |
| Colour | Gray |
| Display | LED |
| Depth | 94 mm |
| Current | 20 mA |
| Height | 80 mm |
| Output Function | 2 changeover contacts |
| Product Type | simple |
| Please Note | 10 Pack |
| Voltage | 48 Volt DC |
| Temperature | -40 to 60 deg C |
| Width | 14 mm |
