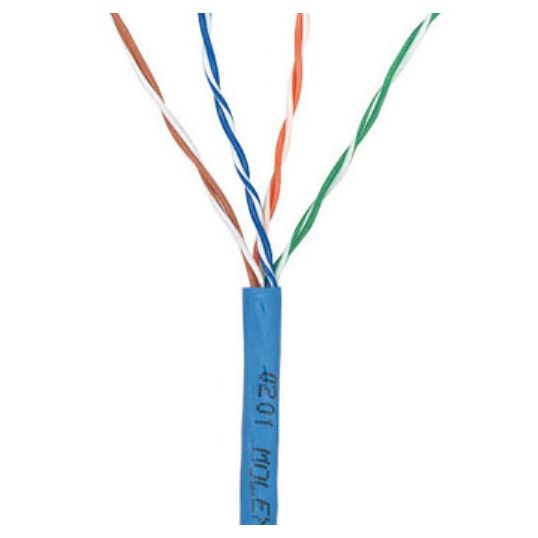

Molex PowerCat UTP Network Cable Cat5e 4 Pair 24AWG Polyethylene/PVC Blue 305M

$Molex\Molex_CAA-00009.jpg$

Description

UTP Network Cable Cat5e 4 Pair, 24 AWG, 350 MHz Bandwidth, < 90 Ohm/km Conductor Resistance, 0.6mm Sheath Thickness, Cat5e UTP Cable, 4 Pair, 100 N Max. Pulling Force, Solid Soft Plain Copper Conductor, Solid Polyethylene Insulation, PVC Sheath, Blue Sheath, 305 mtr Length, 5.5mm Outside Diameter

Key Specifications

Barcode (EAN-13)	1P0181700003
SKU	MODCAA-00009
Brand	Molex
Product Type	Network Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Supports telephony voice wiring, 10 Base-T and ultrahigh speed data net works such as Gigabit Ethernet (1000 Base-T) 4 pair PVC Cable Colour coded pairs for ease of termination
Standard Pack Size	1
UNSPSC Class	43223300
UOM	MTR
Vendor Product	CAA-00009
Conductor Material	Solid Soft Plain Copper
Cable Type	Cat5e UTP
Conductor Resistance	< 90 Ohm/km
Conductor Size	24 AWG
Frequency Bandwidth	350 MHz
Insulation Material	Solid Polyethylene
Max. Pulling Force	100 N
Outside Diameter	5.5 mm
Pair Count	4 Pair
Sheath Colour	Blue
Sheath Material	PVC
Sheath Thickness	0.6 mm
