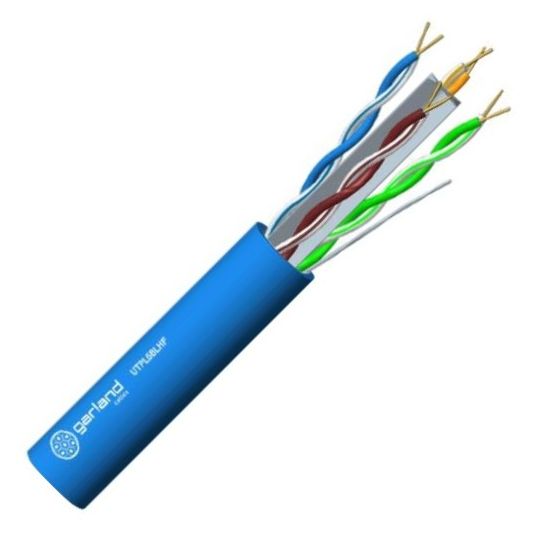

Garland Pro Series UTP Data Cable Cat6 4 Pair 23AWG Polyethylene/PVC Blue 305M

$Garland\Garland_UTPL6BL305RBW.jpg$

Description

UTP Data Cable Cat6 4 Pair, 23 AWG, ? 7.32 Ohm/100 mtr at 20 deg C Conductor Resistance, Stranding: Solid, Bend Radius: Static: 62mm, 142 N Max. Pulling Force, 4 Pair, Cat6 UTP Cable, PACW Conductor, Cross-Web Separator , Rip Cord Filler, PE Insulation, PVC Sheath, Blue Sheath,-15 to 75 deg C, 305 mtr Length, 6.2mm Outside Diameter

Key Specifications

Barcode (EAN-13)	9329849008017
SKU	GARUTPL6BL305RBW
Brand	Garland
Product Type	Cat6 Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	305
UNSPSC Class	26121600
UOM	MTR
Vendor Product	UTPL6BL305RBW-NLA
Bend Radius	Static: 62 mm
Cable Type	Cat6 UTP
Conductor Material	PACW
Conductor Resistance	? 7.32 Ohm/100 mtr at 20 deg C
Conductor Size	23 AWG
Filler Material	Cross-Web Separator/Rip Cord
Insulation Material	PE Compound
Max. Pulling Force	142 N
Outside Diameter	6.2 mm
Pair Count	4 Pair
Sheath Colour	Blue
Sheath Material	PVC
Stranding	Solid
Temperature	-15 to 75 deg C
