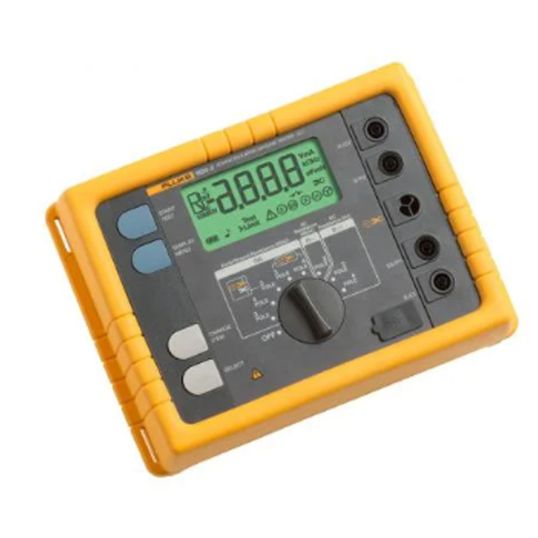

Fluke Advanced GEO Earth Ground Tester Kit 48V 250mA

chevron-left
loader
Loading...

Description

chevron-down
The Fluke 1630-2 FC Stakeless Earth Ground Clamp is the kind of high-quality, rugged tool you expect from Fluke. Heavy-duty clamp jaw stays in alignment and in calibration even in every day, on-the-job industrial environments. Test the grounding components of equipment in hard-to-reach spaces, including areas that are indoors or fully paved and do not permit driving auxiliary test stakes. Stay on line-identify ground loop resistance without the need to disconnect then reconnect the earth electrode from the system

Key Specifications

chevron-down
Barcode (EAN-13)
095969666879
SKU
FLU1625-2KIT
Brand
Fluke

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • 3 and 4 pole Fall-of-Potential, earth resistance loop testing
  • 4-pole Soil Resistivity testing
  • Selective earth ground rod testing using 1 clamp
  • Stakeless earth ground rod testing using 2 clamps
  • IP56 rated for outdoor use
  • Rugged carrying case
Standard Pack Size 1
UNSPSC Class 41113600
UOM EA
Vendor Product FLU1625-2KIT
Display Type 7 segment liquid crystal
Dimensions 250 x 133 x 187 mm
Frequency 45-400 Hz
Power Supply AA Battery
Product Type simple
Temperature -10 to 50 deg C
Voltage 48 Volt AC
