Description

chevron-down

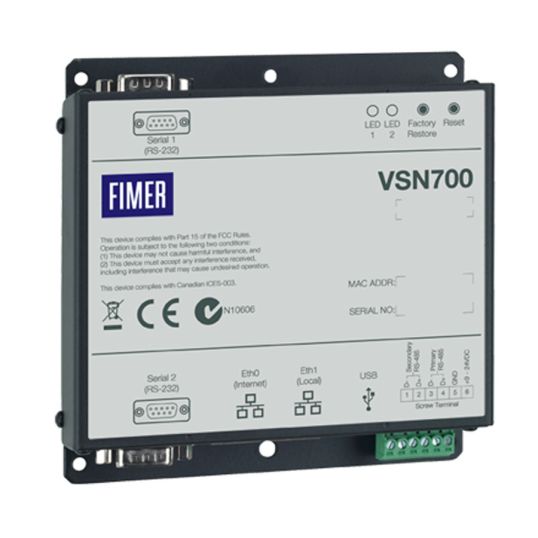

The VSN700 Data Logger is available in three performance levels to fit anyone's budget and functionality: VSN700-01 Data Logger is available to those residential customers who only need to monitor up to five (5) single-phase inverters1). VSN700-03 Data Logger is a cost-optimized logger for small commercial installations with up to ten (10) single and three-phase string inverters1) and one weather station (VSN800 Weather Station). VSN700-05 Data Logger provides both customer data management and inverter command and control for commercial and utility PV system operation, as well as SCADA integration.

Key Specifications

chevron-down
SKU
FIMVSN700-03-A0
Brand
Fimer SPA

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Data management system with serial and Ethernet ports for data and event logging
  • Quick installation and fast plug and play commissioning with device discovery mechanism
  • Network Provisioning with dynamic IP addressing (DHCP client and server)
  • Reliable and secure transmission of operational data to Aurora Vision Plant Management Platform
  • Remote configuration and management capabilities, including firmware upgrades over the Internet using Plant Portfolio Manager
  • Simple end-user UI using Plant Viewer
Standard Pack Size 1
UNSPSC Class 26111600
UOM EA
Vendor Product VSN700-03-A0
Connector System RS485 / RS232
Current 1 Amp
Dimensions 132 mm Width x 133 mm Height x 31 mm Depth
For Use With The Sml-Med Commercial Market
Item Weight 0.91 kg
IP Rating IP20
Mounting Method Flange
Product Type simple
Temperature -40 to 185 deg F
