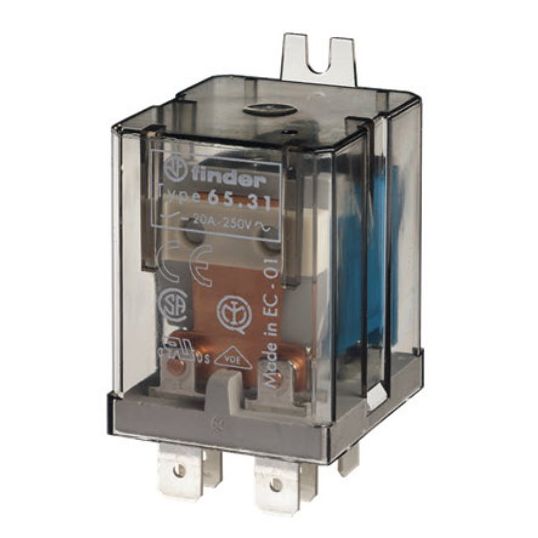

Finder General Purpose Relay Plug-In/Flange Mount 4P 1NO 30A 110V 4 Pin Flat

Description

General Purpose Relay, 250 Volt AC, 110 Volt AC, 30 Amp, 1.1 kW, 4 Pin Flat, 1NO, 1600 Ohm, Operating Time: 12 Breaking/10 Making ms, 80000 Cycles, Plug-In Mount/Flange, Silver Cadmium Oxide, -40 to 75 deg C, 52.5 mm Height, 32.2 mm Width, 36.5 mm Depth

Key Specifications

Barcode (EAN-13)	8012823282527
SKU	FID65.31M110VAC
Brand	Finder
Range Name	Series 65
Product Type	Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Complete range from PCB to power relays to cover all of your switching requirements Compact construction allowing for most efficient use of space Without LED, test switch
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	6531M110VAC
Contact Material	Silver Cadmium Oxide
Current	30 Amp
Contact Configuration	1 Normally Opened
Mounting Method	Plug-In/Flange
Depth	36.5 mm
Height	52.5 mm
Operating Coil Voltage	110 Volt AC
Operating Cycles	80000 Cycles
Operating Time	12 Breaking/10 Making ms
Pin Configuration	4 Pin Flat
Power Rating	1.1 kW
Temperature	-40 to 75 deg C
Resistance	1600 Ohm
Voltage	250 Volt AC
Width	32.2 mm
