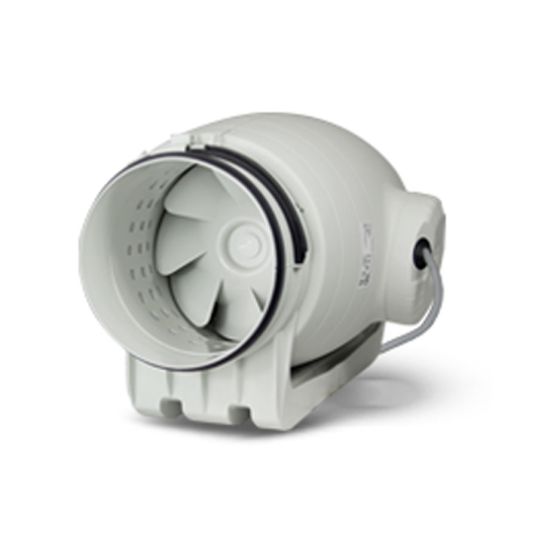

Fantech In-Line Fan 230 Volt 0.1-0.13 Amp 462mm Cut-Out 34-33dBA at 3m

Description

The TD Silent Series of low-profile mixed-flow in-line fans incorporates a break-through in noise reduction resulting in units that operate very quietly. The low noise levels are achieved through the technically advanced design of the internal construction, which does not impede on the air flow performance of the fan. There are 6 models in the series, ranging from 100 to 315mm diameter spigot sizes.

Key Specifications

SKU	FANTD-350/125SIL
Brand	Fantech
Product Type	Exhaust fans

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	High performance mixed-flow impeller Low noise operation Vibration absorbing elements are integrated into the advanced body design 360 deg rotating junction box makes connection of power cable easier (applicable for 100, 125, 150 and 200mm sizes only) Integral mounting foot makes installation more simple 1 to 30 minute run-on timer available on 100 to 200mm models Includes plug and lead for easy installation Convenient 2-speed motor, factory set to high speed (single speed on models with run-on timer) Fan body can be easily removed without disturbing connected ductwork
Standard Pack Size	1
UNSPSC Class	40101600
UOM	EA
Vendor Product	TD-350/125SIL
Cut-Out Size	462 mm
Duct Size	125 mm
Fan Speed	32-38 rps
Frequency	50 Hz
Height	223 mm
IP Rating	IP44
Material	Injection Moulded Plastic/Polypropylene
Motor Type	Squirrel Cage Induction
Mounting Method	Ceiling
Noise Level	34-33 dBA at 3 mtr
Phase	1 Phase
Speed Setting	2
Temperature	40 deg C
Voltage	230 Volt
Wattage	0.022-0.03 kW
Width	223 mm
