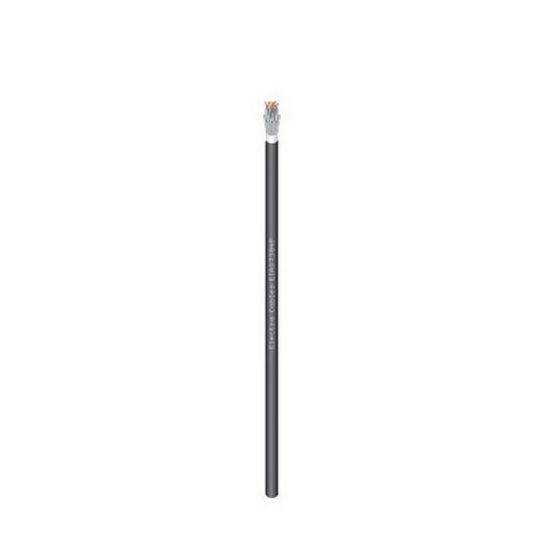

Electra 0.22mm 2 Pair Grey Data Cable Overall Screened Polypropylene/PVC

Description

Data Cable, 0.22 mm, Tinned Annealed Copper, 0.3 kV, 2 Pair, 7/0.2 mm Strands, Overall Screened Screen, 5.7 mm Overall Diameter, 0.8 mm Sheath Thickness, 8.6 Ohm/100m Conductor Resistance, Aluminum/Polyester Mylar Tape Screen, Blue/White/Orange Core, Polypropylene Insulation, 4V-75 PVC Sheath, Grey Sheath, AS/NZS 1125 AS/NZS 3808

Key Specifications

SKU	ELCEAS7202P
Brand	Electra
Product Type	Data Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	EAS7202P-100
Conductor Resistance	8.6 Ohm/100m
Conductor Size	0.22 mm
Core Colours	Blue/White/Orange
Conductor Type	Tinned Annealed Copper
Insulation Material	Polypropylene
Number of Pairs	2 Pair
Overall Diameter	5.7 mm
Screen Format	Overall Screened
Screen Material	Aluminium/Polyester Mylar Tape
Sheath Colour	Grey
Sheath Thickness	0.8 mm
Sheath Material	4V-75 PVC
Standards	AS/NZS 1125 AS/NZS 3808
Stranding	7/0.2 mm
Voltage	0.3 kV
