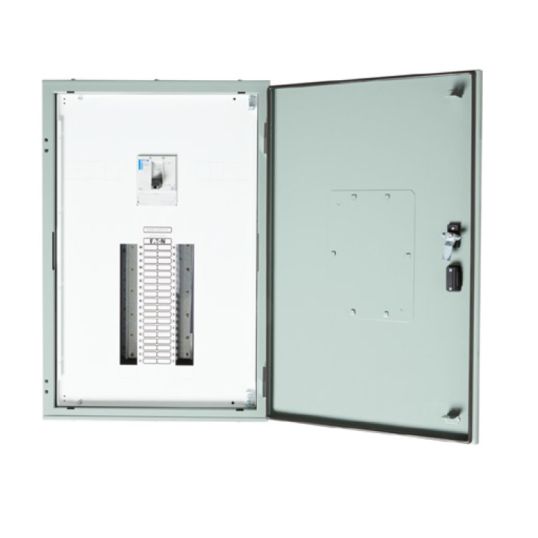

Eaton Main Switch Disconnector Distribution Board 36P 250A

$Eaton\Eaton_DB-IP42-GREY.jpg$

Description

Eaton’s Aussie series distribution boards have evolved through our intimate knowledge of the industry, along with feedback from electrical contractors, consulting engineers and end users, to provide solutions to a wide range of electrical distribution applications in commercial buildings.The Aussie Series delivers safe, reliable and high performance protection of electrical power distributionsystems in accordance with AS/NZS61439

Key Specifications

Barcode (EAN-13)	932128922707
SKU	EATXB42OR09-25SD36
Brand	Eaton

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Easy to select, install and use Fitted with an adjustable and removable chassis The front door on Eaton’s Distribution Boards are both reversible and removable Our gland plates on the top and bottom are also removable for easy access and convenience Fitted with split earth and neutral bars with copper cross links
Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	XB42OR09-25SD36
Colour	Orange
Current	250 Amp
Dimensions	900 mm Height x 600 mm Width x 232 mm Depth
Door Type	Hinged
Finish	Powder Coated
IP Rating	IP42
Material	Mild Steel
Mounting Method	DIN Rail
Number Of Poles	36P
Voltage	240-415 Volt
