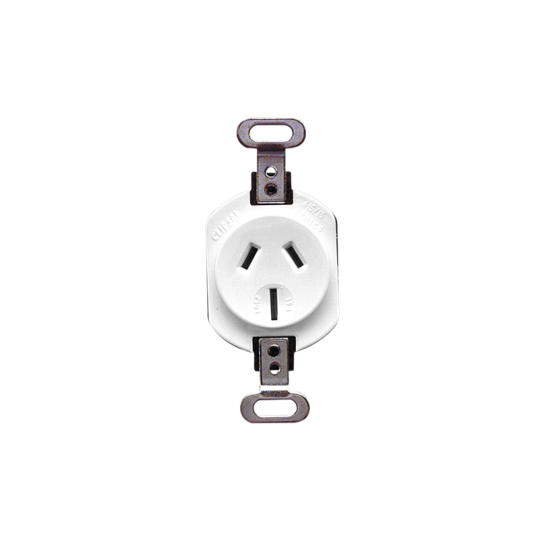

Clipsal Socket Outlet Flush Mount Rear Connect 1 Gang 15A 250V 3 Pin Polarized Flat White

chevron-left
loader
Loading...

Description

chevron-down
GPO Rear Connect, 250 Volt Switch, 15 Amp, 3 Pin Polarized, 1 Gang, Rear Screw Connection, 3 x 2.5 sq-mm/4 x 4 sq-mm Terminal Capacity, Flush Mounting, 84 mm Mounting Centres, White, 94 mm Height, 42 mm Width, 27 mm Depth

Key Specifications

chevron-down
Barcode (EAN-13)
9311554065874
SKU
CLI415/15WE
Brand
Clipsal
Product Type
Socket Outlets

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Terminals accommodate 3 x 2.5 sq-mm cables and earth contact terminal accommodates 4 x 4 sq-mm cables
Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product 415/15-WE
Colour White
Connection Type Rear Screw
Current 15 Amp
Depth 27 mm
Height 94 mm
Mounting Centres 84 mm
Mounting Method Flush
Number Of Gangs 1 Gang
Pin Configuration 3 Pin Polarized
Terminal Capacity 3 x 2.5 sq-mm/4 x 4 sq-mm
Width 42 mm
