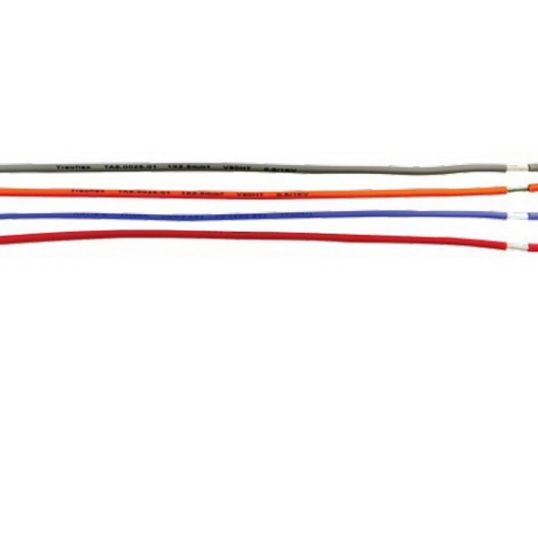

Treotham Treoflex High Temperature Flexible Wire Single Insulated 1 Core 2.5mm 0.6/1kV Copper V90HT PVC Blue

Description

Flexible Wire, Single Insulated, High Temperature, 1 Core, 2.5 mm, Tinned Annealed Copper, 0.6/1 kV, 29 Amp, 50/0.25 mm Strands, 3.6 mm Overall Diameter, 10.8 mm Bend Radius, 0.8 mm Insulation Thickness, Conductor Resistance: 7.98 Ohm/km, V-90HT PVC Insulation, Unsheathed, Blue Insulation, -20 to 90 deg C, AS/NZS 1125, AS/NZS 3808, IEC60332-1, AS/NZS 5000.1

Key Specifications

SKU	TRETA8.0025.01.BE
Brand	Treotham
Product Type	Flexible Cable High Temperature

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Flame Retardant
Standard Pack Size	1
UNSPSC Class	26121600
UOM	RO
Vendor Product	TA8.0025.01.BE
Bend Radius	10.8 mm
Conductor Resistance	7.98 Ohm/km
Conductor Size	2.5 mm
Current	29 Amp
Conductor Type	Tinned Annealed Copper
Insulation Colour	Blue
Insulation Material	V-90HT PVC
Insulation Thickness	0.8 mm
Overall Diameter	3.6 mm
Number of Cores	1 Core
Sheath Material	Unsheathed
Standards	AS/NZS 1125 AS/NZS 3808 IEC60332-1 AS/NZS 5000.1
Temperature	-20 to 90 deg C
Stranding	50/0.25 mm
Voltage	0.6-1 kV
