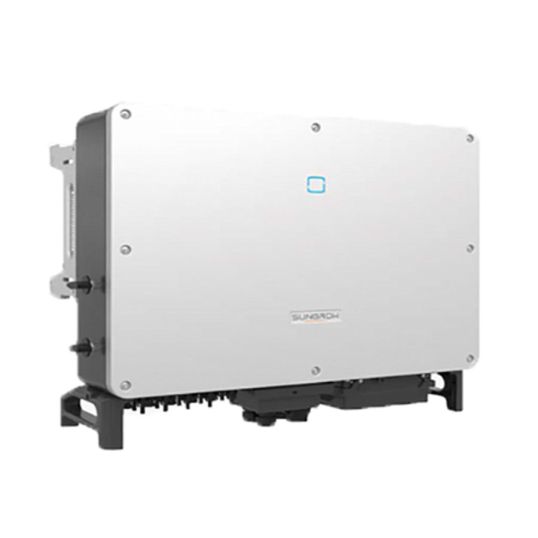

Sungrow Premium String Inverter with WiFi DC Cover DC Switch 29.9 kVA 3 MPPT 3 PH 230/400V 3/N/PE 48.15A IP66

Description

Solar Inverter String, 3 Phase Phase, 1100 Volt DC Input, 585 Volt DC Nominal, 200-1000 Volt DC MPPT Voltage Range, 78 Amp DC Max. Input, 3 MPPTs, 29.9 kVA AC Output, 230-400 Volt, 50/60 Hz, 48.15 Amp AC Output, >0.99 Power Factor, <3% Total Harmonic Distortion, 0.986 Efficiency, 0.983 European Weighted Efficiency, 4000 mtr Max. Altitude, RS485/WLAN/Ethernet, LED Display, Smart Forced Air Cooling Cooling, IP66, -30 to 60 deg C

Key Specifications

SKU	SGWSG30CX
Brand	Sungrow
Range Name	Premium
Product Type	Solar Inverter String

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	SG30CX
AC Nominal Voltage	230-400 Volt
AC Operating Frequency	50/60 Hz
AC Output Current	48.15 Amp
AC Output Power	29.9 kVA
Communication Port	RS485/WLAN/Ethernet
Cooling Method	Smart Forced Air Cooling
DC Input Voltage	1100 Volt
DC Max. Input Current	78 Amp
DC MPPT Voltage Range	200-1000 Volt
DC Nominal Voltage	585 Volt
Depth	310 mm
Display Type	LED
Efficiency	0.986
European Weighted Efficiency	0.983
IP Rating	IP66
Height	595 mm
Max. Operating Altitude	4000 mtr
Number of MPPTs	3
Operating Temperature	-30 to 60 deg C
Phase	3 Phase
Power Factor	>0.99
Relative Humidity	0-100%
Total Harmonic Distortion	<3%
Width	702 mm
