Cabac Cable Loom Tube 16 mm ID 20 mm OD Polypropylene Black

chevron-left
loader
Loading...

Description

chevron-down

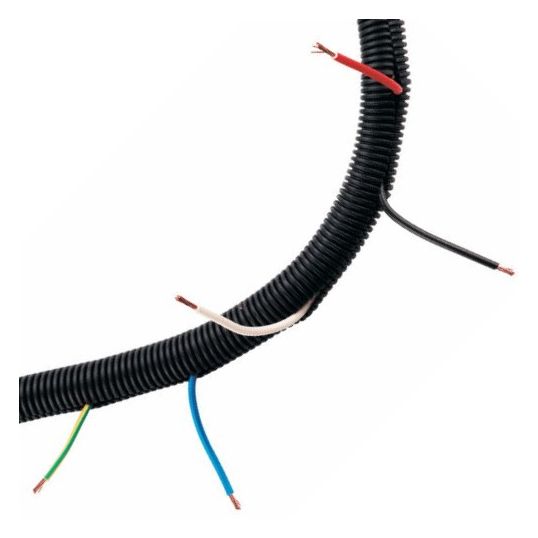

CABAC corrugated loom tube is a simple but effective way to organise and consolidate loose wires into a wire loom, securing them neatly and helping to protect them from damage. This method of cable management consists of polypropylene tubing with a cut running along the length. The opening provides quick access to the bundle, allowing cables or wires to be exposed, inserted, removed or rearranged wherever necessary. This makes loom tube the perfect choice where flexible, protective wire harnessing and routing is required.. Use CABAC loom tube to tidy and bundle cables and wires, or apply over an existing assembly for extra cable protection. Creating a wire loom using our split tubing is incredibly quick and simple; the wires are slipped into the tube to contain them, and the harness can then be anchored using cable ties if necessary.

Key Specifications

chevron-down
Barcode (EAN-13)
9318674523284
SKU
CAALT16
Brand
Cabac
Product Type
Loom & Spiral Tubes

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Lightweight, flexible polypropylene tube for organising and protecting wires in automotive and industrial settings
  • Features a longitudinal cut for quick and easy access to cables during installation, removal, or rearrangement
  • Durable and crush-proof, crafted from impact-resistant copolymer for high strength
  • Flame-retardant (UL94 V2) with moderate UV stability, suitable for indoor use and limited outdoor exposure
  • Excellent resistance to automotive oils, greases, and solvents
  • Excellent alternative to spiral binding and braided sleeving
  • Flame retardant and resistant to chemicals.
  • The black polypropylene material is UV stabilized for both indoor and outdoor applications
  • Quick installation time
Standard Pack Size 1
UNSPSC Class 39131600
UOM RO
Vendor Product LT16
Colour Black
Body Material Polypropylene
Inside Diameter 16 mm
Outside Diameter 20 mm
Nominal Diameter 16 mm
Temperature 120 deg C
Wall Thickness 0.3 mm
