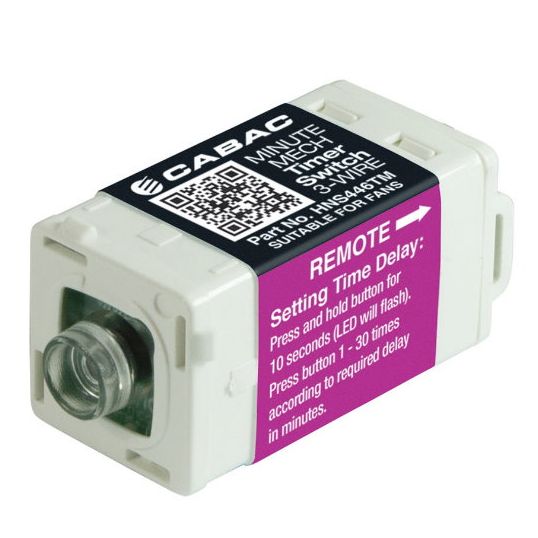

Cabac Minute Timer Switch Mechanism 3 Wire 1 Gang 5A 230/240V White

Description

Minute Timer Switch Mechanism, 230/240 Volt AC, 5 Amp, 50 Hz, 1200 Watt/500 VA, 1 Gang, Screw Terminal, Terminal Capacity: 0.5 to 1.5 mm, White, 0 to 50 deg C

Key Specifications

Barcode (EAN-13)	9318674160670
SKU	CAAHNS446TM
Brand	Cabac
Product Type	Timers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The S-Click HNS446TM is a 3-wire minute timer switch that is ideal for fans, motors and commercial lighting Time delay can be set in minute increments from 1-30 minutes-perfect for lights or appliances that are only required for relatively short periods Alternatively, this 2-in-1 unit also allows for regular operation of lights and appliances; a sustained two-second press turns power on with no time out and can be manually turned off with a quick tap Our minute timer switch is ideal for heat lamps, spa air pumps, exhaust fans and other fans A blue LED indicates device status and gives an expiry warning within the last 10 seconds before program time-out The timer settings are retained even after loss of power and can be configured to power up on or off after loss of mains power Programming your chosen off time couldn't be simpler A sustained 10 second press of the button enters programming mode Just tap the button once for each minute of run time you require, up to 30 minutes Programming mode expires 10 seconds after the last tap, and the unit then commits your settings to memory
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	HNS446TM
Colour	White
Current	5 Amp
Frequency	50 Hz
Number Of Gangs	1 Gang
Power Rating	1200 Watt/500 VA
Temperature	0 to 50 deg C
Terminal Capacity	0.5 to 1.5 sq-mm
Terminal Type	Screw
Voltage	230-240 Volt
