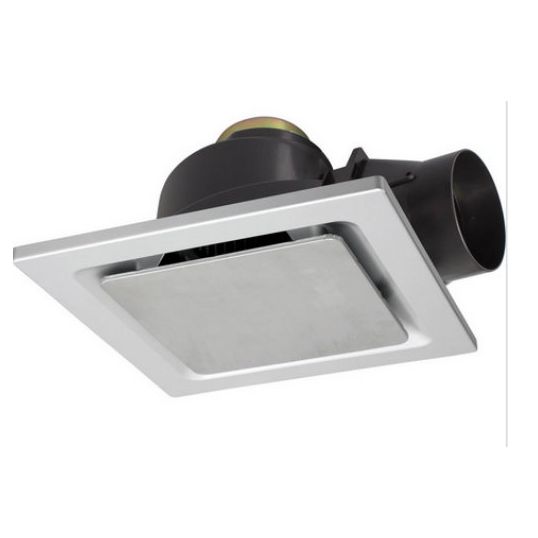

Brilliant Lighting Exhaust Fan Square 325mm 240 Volt ?5.3 to ?320 cu-m/hr 290mm Cut-Out ?45dBA Stainless Steel 304

Description

Exhaust Fan, Fan Size: 325mm, 240 Volt, Motor Wattage: 28 Watt, Square, Air Flow Rate (cu-m/hr): ?5.3 to ?320 cu-m/hr, Air Flow Rate (l/sec): ?88 l/sec, Cut-Out Size: 290mm, Duct Size: 150mm, IPX4, Fan Noise: ?45 dBA, Ceiling Mounting, Motor Type: Ball Bearing, Stainless Steel 304, 325mm Length, 325mm Width, 194mm Height

Key Specifications

Barcode (EAN-13)	9312641182009
SKU	BRI18194/16
Brand	Brilliant Lighting
Range Name	Sarico
Product Type	Exhaust fans

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	High velocity exhaust fan Easy installation clamps to secure fan into place 150mm side exhaust duct IPX4 water resistant rating Removable fascia for easy cleaning Exhaust damper to prevent drafts Requires a switched surface socket for DIY installation
Standard Pack Size	1
UNSPSC Class	40101600
UOM	EA
Vendor Product	18194/16
Air Flow Cubic Meters per Hour	?5.3 to ?320 cu-m/hr
Air Flow Litres per Second	?88 l/sec
Colour	Stainless Steel
Duct Size	150mm
Cut-Out Size	290mm
Fan Size	325 mm
IP Rating	IPX4
Height	194mm
Mounting Method	Ceiling
Motor Type	Ball Bearing
Noise Level	?45 dBA
Shape	Square
Voltage	240 Volt
Width	325mm
Wattage	28 Watt
