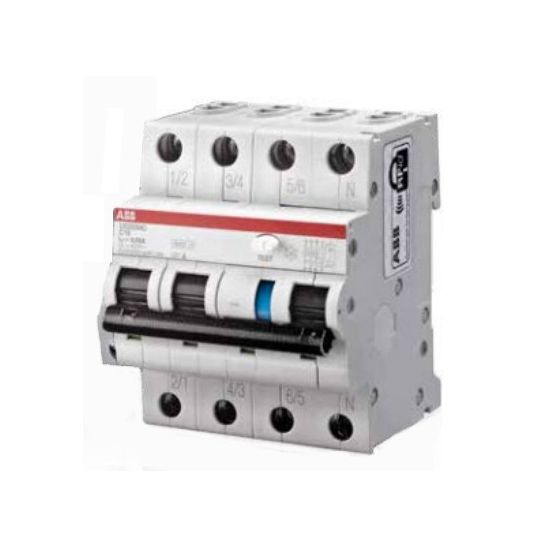

ABB Combination RCD Circuit Breaker RCBO 4Pole 32 Amp 400-415V AC 6 kA
Loading...
Description
Combination RCD Circuit Breaker RCBO, 32 Amp, 400-415 Volt AC, 50/60 Hz, Interrupt Capacity: 6 kA, Trip Sensitivity: 30 mA, Number of Poles: 4, 25 mm Flexible/Rigid Terminal Connection, IP2X,-25 to 55 deg C, 0.085 m Height, 0.071 m Width, 0.069 m Depth
Key Specifications
| SKU |
ABBDS203NCC32AC30
|
|---|---|
| Brand |
ABB
|
| Product Type |
Combination RCBO
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | DS203NCC32AC30 |
| Current | 32 Amp |
| Height | 0.085mtr |
| Depth | 0.069mtr |
| Frequency | 50/60 Hz |
| Interrupt Capacity | 6 kA |
| IP Rating | IP2X |
| Number Of Poles | 4 Pole |
| Temperature | -25 to 55 deg C |
| Terminal Connection | 25 sq-mm Flexible/Rigid |
| Trip Sensitivity | 30 mA |
| Voltage | 400-415 Volt |
| Width | 0.071mtr |
