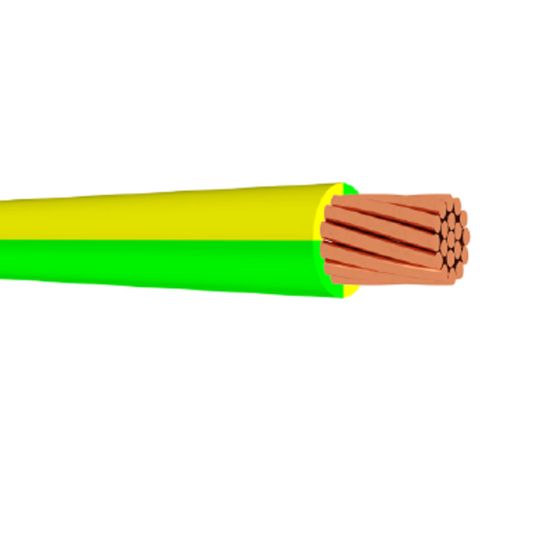

WWC 150mm Building Wire Green/Yellow 1mtr
Loading...
Description
Building Wire, 150 mm, Class 2 Annealed Copper, 0.6-1 kV, 18.5 mm Overall Diameter, 1 mtr Length, 1.8 mm Insulation Thickness, DC: 0.124 Ohm/km Conductor Resistance, V-90 PVC Insulation, Green/Yellow Insulation, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6
Key Specifications
| SKU |
WWCE2V150
|
|---|---|
| Brand |
WWC
|
| Product Type |
Building Wire
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121614 |
| UOM | MTR |
| Vendor Product | E2V150 |
| Conductor Type | Class 2 Annealed Copper |
| Conductor Resistance | DC: 0.124 Ohm/km |
| Insulation Colour | Green/Yellow |
| Insulation Thickness | 1.8 mm |
| Insulation Material | V-90 PVC |
| Overall Diameter | 18.5 mm |
| Standards | AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6 |
| Voltage | 0.6-1 kV |
| Conductor Size | 150 mm |
