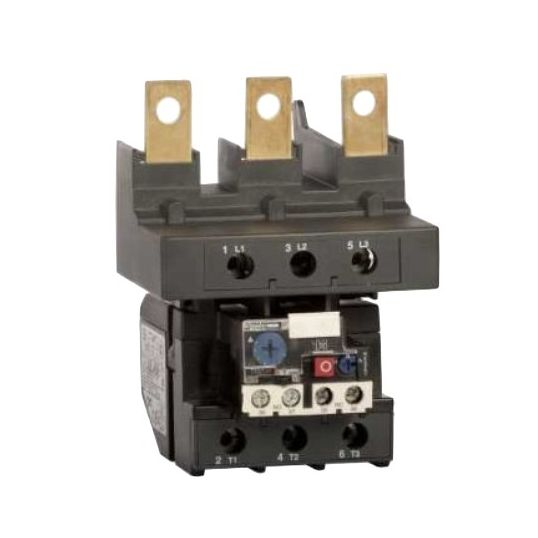

Schneider Thermal Overload Relay DIN Rail/Plate Mount 95-120A 1000V 1NO-1NC Class 10A Blue Push-Button IP20 Screw Clamp

Description

Thermal Overload Relay, Setting Range From (Amp): 95, Setting Range To (Amp): 120, 1000 Volt AC, 1NO-1NC, 0-400 Hz, Class 10A, Blue Push-Button, Tightening Torque: 1.7 N/m, DIN Rail/Plate Mount, Screw Clamp Terminal, IP20, -20 to 60 deg C, 132 mm Depth, For Use With: LC1D115 and LC1D150 Contactors, Please Note: 2 Phase

Key Specifications

Barcode (EAN-13)	3389110523348
SKU	TEELRD-4367
Brand	Schneider
Range Name	TeSys Model D
Product Type	Contactor Overloads

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	LRD4367
Contact Configuration	1 Normally Opened & 1 Normally Closed
Control Type	Blue Push-Button
Depth	132 mm
For Use With	LC1D115 and LC1D150 Contactors
Frequency	0-400 Hz
IP Rating	IP20
Mounting Method	DIN Rail/Plate
Operational Voltage	1000 Volt AC
Please Note	2 Phase
Setting Range From (Amp)	95.0
Temperature	-20 to 60 deg C
Setting Range To (Amp)	120.0
Terminal Connection	Screw Clamp
Tightening Torque	1.7 N/m
Trip Characteristic	Class 10A
