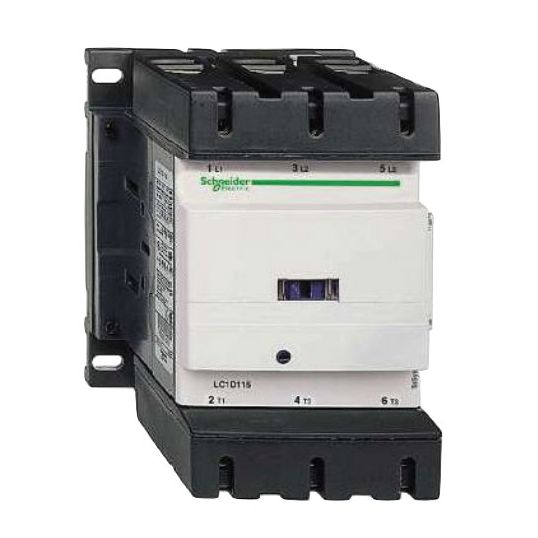

Schneider Contactor General Purpose AC Operated 3 Pole 65kW 115A AC3 200A AC1 240V 1NO-1NC Auxilary DIN Rail/Plate Mount

Description

Contactor General Purpose AC Operated, 240 Volt AC, AC3 Rating (kW): 65, AC3 Rating (Amps): 115 at 440 Volt AC, AC1 Rating (Amps): 200 at 440 Volt AC, 1000 Volt AC, 300 Volt DC, 1NO-1NC Auxiliary, 3 Pole, Operating Time: 6-20 ms Closing, 20-50 ms Opening, Lug Ring, DIN Rail Mount or Base/Plate, IP20, -40 to 60 deg C, 158 mm Height, 120 mm Width, 136 mm Depth

Key Specifications

Barcode (EAN-13)	3389110381788
SKU	TEELC1-D1156U7
Brand	Schneider
Range Name	TeSys Model D
Product Type	Contactors General

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	LC1D1156U7
AC1 Rating (Amps)	200 Amp AC1
AC3 Rating (Amps)	115 Amp AC3
Contact Voltage	1000 Volt AC/300 Volt DC
Contact Configuration	1 Normally Opened & 1 Normally Closed Aux
Depth	136 mm
Height	158 mm
IP Rating	IP20
Mounting Method	DIN Rail/Base/Plate
Number Of Poles	3 Pole
Operating Coil Voltage	240 Volt AC
Operating Time	6-20 ms Closing/20-50 ms Opening
Temperature	-40 to 60 deg C
Terminal Connection	Lug Ring
Width	120 mm
