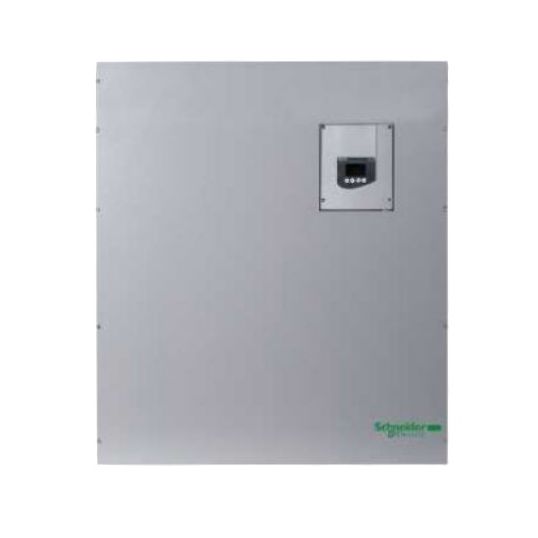

Schneider Motor Starter Soft Start 3 Phase 500kW 415V

Description

Motor Starter Soft Start 3 Phase, 230-415 Volt, 855 Amp, 50/60 Hz, 500 kW, 220 kW @ 230 Volt, 710 kW @ 400 Volt, 230 Volt, 3 Phase, IP00, Start With Torque Control, -10 to 40 deg C/40 to 60 deg C, 890 mm Height, 770 mm Width, 315 mm Depth

Key Specifications

Barcode (EAN-13)	3389110982558
SKU	TEEATS48M10Q
Brand	Schneider
Range Name	Altistart 48
Product Type	Motor Starters Soft Start

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	ATS48M10Q
Current	855 Amp
Depth	315mm
Frequency	50/60 Hz
Height	890mm
IP Rating	IP00
Motor Power	220 kW at 230 Volt/710 kW at 400 Volt
Phase	3 Phase
Starting Modes	Start With Torque Control
Supply Voltage	230-415 Volt
Temperature	-10 to 40 deg C/40 to 60 deg C
Wattage	500 kW
Width	770mm
