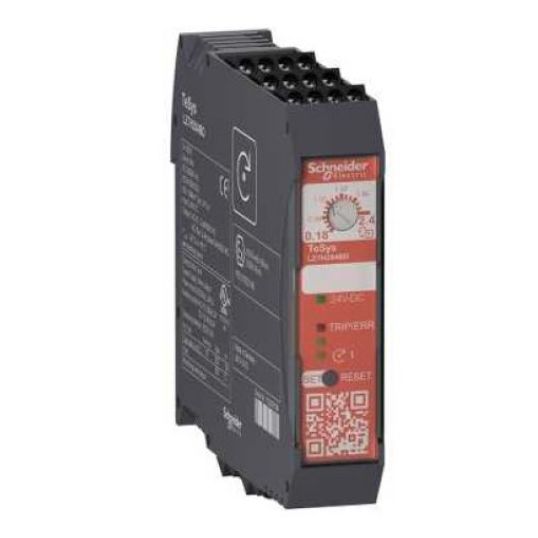

Schneider Motor Starter Reversing Direct On Line 3.0kW 6.5/9/5/7A 24VDC IP20

Description

Motor Starter Reversing Direct On Line, 500 Volt AC, 6.5 Amp, 9 Amp , 5 Amp, 7 Amp, 50/60 Hz, 3 kW, 1.5 kW at 220/230/380 Volt AC, 3 kW at 400/415/440/500 Volt AC, 24 Volt DC, Setting Range: 1.5-9 Amp, Manual/Automatic/Electrical Reset, Screw Clamp, IP20, Direct On Line, -25 to 70, -40 to 80 deg C, 99 mm Height x 22.5 mm Width x 114.5 mm Depth, Torque-Off

Key Specifications

Barcode (EAN-13)	3606485421254
SKU	SHNLZ8H6X5BD
Brand	Schneider
Range Name	TeSys
Product Type	Motor Starters Reversing

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	LZ8H6X5BD
Coil Voltage	24 Volt DC
Connection Type	Screw Clamp
Current	6.5/9/5/7 Amp
Depth	114.5 mm
Frequency	50/60 Hz
Height	99 mm
IP Rating	IP20
Motor Power	1.5 kW @ 220-230-380 Volt AC/3 kW @ 400-415-440-500 Volt AC
Operating Temperature	-40 to 80 deg C
Please Note	Torque-Off
Voltage	500 Volt AC
Wattage	3 kW
Width	22.5 mm
