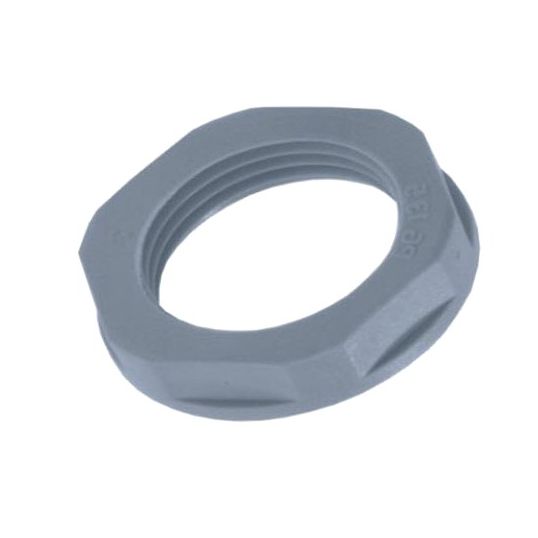

Lapp Kabel Cable Gland Lock Nut Hex M63 x 1.5 Glass Fiber-Reinforced Polyamide RAL 7035 Light Grey

$Lapp_Kabel\Lapp_Kabel_SKINTOP_GMP_GL_M.jpg$

Description

Cable Gland Lock Nut, Hex, M63 x 1.5, 1.5 mm Pitch, 75 mm Width Across Flats, 82.5 mm Width Across Corners, Glass Fibre-Reinforced Polyamide Body, RAL 7035 Light Grey Finish, -20 to 100 deg C (Dynamic), -40 to 100 deg C (Statically), 8 mm Depth

Key Specifications

SKU	LAP53119073
Brand	Lapp Kabel
Range Name	Skintop GMP-GL-M
Product Type	Gland Accessories

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Glass fiber-reinforced for maximum mechanical stability Supporting surface for spanner means scratches on the housing are avoided Good chemical resistance Assembly time Oil resistant Temperature-resistant UV resistant
Standard Pack Size	25
UNSPSC Class	39121400
UOM	EA
Vendor Product	53119073
Depth	8 mm
Finish	RAL7035 Grey
Temperature	-20 to 100 deg C (Dynamic) -40 to 100 deg C (Statically)
Thread Pitch	1.5 mm
Thread Size	M63 x 1.5
Width Across Flats	75 mm
Width Across Corners	82.5 mm
