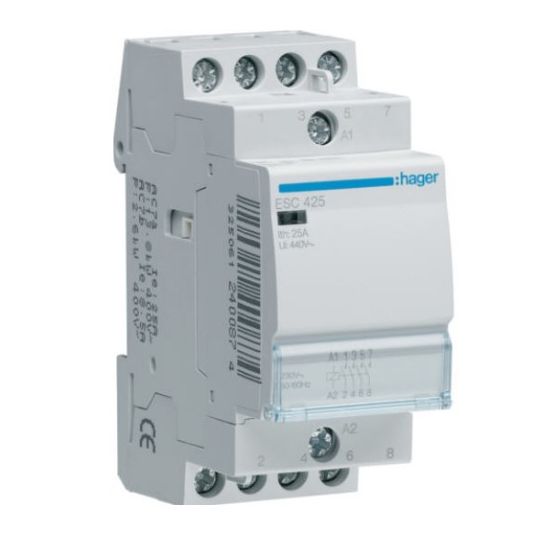

Hager DIN Contactor 4 Pole 8.5A AC3 25A AC1 230V 4NO DIN Rail Mount

Description

DIN Contactor, 230 Volt AC, AC3 Rating (Amps): 8.5, AC1 Rating (Amps): 25, 4 NO, 4 Pole, Operating Time: 25 ms Closing, 15 ms Opening, Screw Terminal, DIN Rail Mount, IP2X, -10 to 50 deg C, 83 mm Height, 35.75 mm Width, 60 mm Depth

Key Specifications

Barcode (EAN-13)	3250612400133
SKU	HAGESC425S
Brand	Hager
Product Type	Contactors DIN

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Hum-free contactors designed to provide customers with a good nights sleep Remote switching and control of power circuits Suitable for lighting, heating, ventilation, pumps and home automation Manual override to set output contacts permanently On or Off - Great for fault finding Night and day override allows the end user to set output contact permanently off or temporarily on until next switching cycle
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	ESC425S
AC1 Rating (Amps)	25 Amp AC1
AC3 Rating (Amps)	8.5 Amp AC3
Contact Configuration	4 Normally Opened
Depth	60 mm
Height	83 mm
IP Rating	IP2X
Mounting Method	DIN Rail
Number Of Poles	4 Pole
Operating Coil Voltage	230 Volt AC
Operating Time	25 ms Closing/15 ms Opening
Temperature	-10 to 50 deg C
Terminal Connection	Screw
Width	35.75 mm
