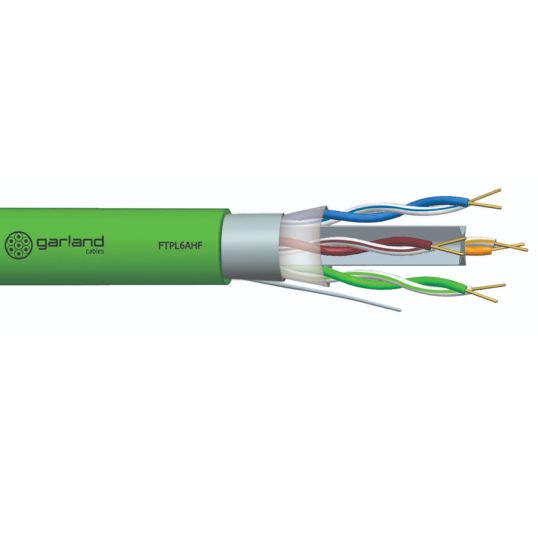

Garland Pro Series F/UTP Data Cable Cat6A 4 Pair Screened 23AWG Polyethylene/LSZH Green 305M

$Garland\Garland_FTPL6AHFGN305.jpg$

Description

CAT 6A Data Cable F/UTP, 80 Volt, Annealed Copper, 23 AWG, 0.58 mm Conductor Diameter, <=7.32 Ohm/100m Conductor Resistance, 1-500 MHz Frequency Bandwidth, Solid Strands, 0.5 mm Sheath Thickness, Cat 6A F/UTP, 4 Pair, 65 mm Static Bend Radius, 126 N Max. Pulling Force, Annealed Copper Conductor, Foam Polyethylene Insulation, Aluminium Screen, 75C Rated LSZH Sheath, Green Sheath, 15 to 75 deg C, 305 mtr Length, 7.2 mm Outside Diameter

Key Specifications

SKU	GARFTPL6AHFGN305
Brand	Garland

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Indoor Cable Fire Retardant LSZH jacket Screened
Standard Pack Size	305
UNSPSC Class	26121600
UOM	MTR
Vendor Product	FTPL6AHFGN305
Conductor Material	Annealed Copper
Cable Type	Cat 6A F/UTP
Conductor Diameter	0.58 mm
Conductor Resistance	<=7.32 Ohm/100m
Bend Radius	65 mm Static
Conductor Size	23 AWG
Conductor Type	Annealed Copper
Frequency Bandwidth	1-500 MHz
Insulation Material	Foam Polyethylene
Max. Pulling Force	126 N
Outside Diameter	7.2 mm
Pair Count	4 Pair
Screen Material	Aluminium
Sheath Colour	Green
Sheath Material	75C Rated LSZH
Sheath Thickness	0.5 mm
Stranding	Solid
Temperature	15 to 75 deg C
Voltage	80 Volt
