Garland Pro Series FTP Data Cable Cat5e 4 Pair Screened 24AWG Polyethylene/PVC Grey 500M

$Garland\Garland_FTP5EBL.jpg$

Description

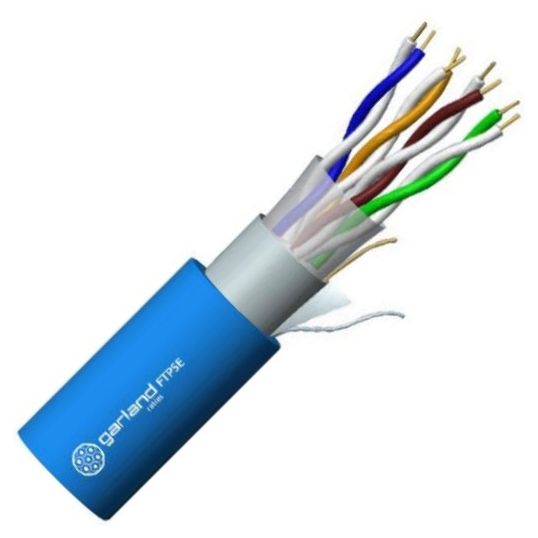

FTP Data Cable Cat5e 4 Pair Screened, 24 AWG/0.23 mm, 0.542mm Conductor Diameter, Stranding: 1/0.542mm, 93.8 Ohm/km at 20 deg C Conductor Resistance, 1000 MOhm.km at 20 deg C Insulation Resistance, 0.23mm Insulation Thickness, 0.6mm Sheath Thickness, 100% Screen Coverage, Cat5e Screened FTP Cable, 4 Pair, Bend Radius: Install: 65mm, 129 N Max. Pulling Force, PACW Conductor, PE Insulation, PVC Sheath, Al. Polyester Tape Screen, Grey Sheath,-15 to 70 deg C, 500 mtr Length, 6.5mm Outside Diameter

Key Specifications

Barcode (EAN-13)	9329849005122
SKU	GARFTP5EGY500
Brand	Garland
Product Type	Cat5E Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	43223300
UOM	MTR
Vendor Product	FTP5EGY500
Conductor Material	PACW
Cable Type	Cat5e Screened FTP
Conductor Diameter	0.542 mm
Conductor Resistance	93.8 Ohm/km at 20 deg C
Bend Radius	Install: 65 mm
Conductor Size	24 AWG/0.23 mm
Insulation Thickness	0.23 mm
Insulation Material	PE Compound
Insulation Resistance	1000 MOhm.km at 20 deg C
Max. Pulling Force	129 N
Outside Diameter	6.5 mm
Pair Count	4 Pair
Screen Material	Al. Polyester Tape
Sheath Colour	Grey
Sheath Material	PVC
Sheath Thickness	0.6 mm
Stranding	1/0.542 mm
Temperature	-15 to 70 deg C
