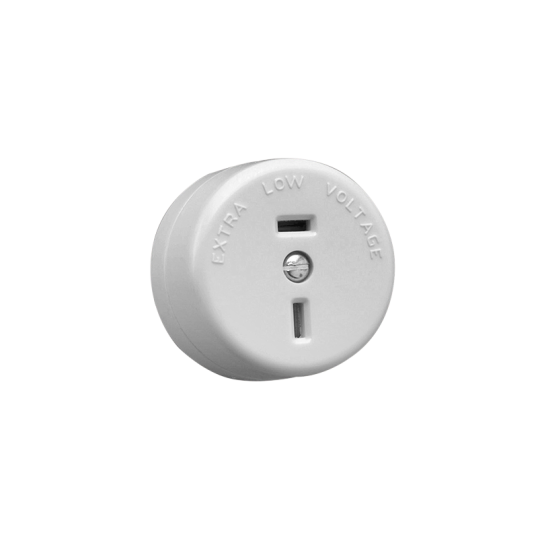

Clipsal Socket Outlet Surface Mount Front Connect 1 Gang 15A 32V 2 Pin Polarized Flat 1 Pole White

chevron-left
loader
Loading...

Description

chevron-down
Socket Outlet, 32 Volt, 15 Amp, 50 Hz, 2 Pin Polarized Flat, 1 Gang, 1 Pole, Screw Connection, 4 x 2.5 sq-mm Terminal Capacity, Surface/Front Mounting, 35-38 mm Mounting Centres, Plastic, White, 47 mm Diameter, 28 mm Depth

Key Specifications

chevron-down
Barcode (EAN-13)
9311554064860
SKU
CLI402/32WE
Brand
Clipsal

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Front connection type
  • 2 Polarised flat pins
  • 4.8 mm live contact terminal bore to accommodate 4 X 2.5 sq-mm cables
Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product 402/32-WE
Colour White
Connection Type Screw
Current 15 Amp
Diameter 47 mm
Depth 28 mm
Frequency 50 Hz
Mounting Centres 35-38 mm
Material Plastic
Mounting Method Surface/Front
Number Of Gangs 1 Gang
Number Of Poles 1 Pole
Pin Configuration 2 Pin Polarized Flat
Terminal Capacity 4 X 2.5 sq-mm
Voltage 32 Volt
