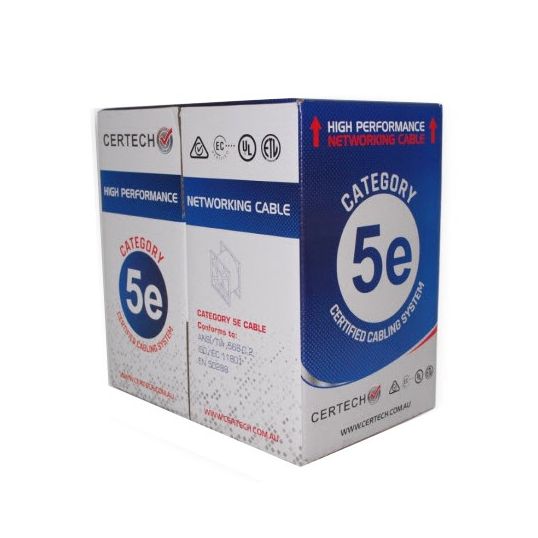

Certech UTP Network Cable High Performance Cat5e 4 Pair 24AWG HDPE/PVC Yellow 305M

Description

UTP Network Cable High Performance Cat5e 4 Pair, 24 AWG, 0.5mm Conductor Diameter, 100 MHz Bandwidth, 9.5 Ohm/100 mtr at 20 deg C Conductor Resistance, 0.50 +/-0.05mm Sheath Thickness, Cat5e UTP Cable, Elongation: >/= 150%, 4 Pair, Tensile Strength: Before Aging: >/= 13.5 MPa, Solid Bare Copper Conductor, Rip Cord Filler, HDPE Insulation, PVC Sheath, Yellow Sheath,-20 to 75 deg C, 305 mtr Length, 5.1mm +/-0.3mm Outside Diameter

Key Specifications

Barcode (EAN-13)	329517627
SKU	CERNCC5ESLDYELLOW
Brand	Certech
Product Type	Network Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	EA
Vendor Product	NCC5ESLDYELLOW
Cable Type	Cat5e UTP
Conductor Diameter	0.5mm
Conductor Resistance	9.5 Ohm/100 mtr at 20 deg C
Conductor Size	24 AWG
Conductor Material	Solid Bare Copper
Elongation	>/= 150%
Filler Material	Rip Cord
Frequency Bandwidth	100 MHz
Insulation Material	HDPE
Pair Count	4 Pair
Outside Diameter	5.1mm +/-0.3mm
Sheath Colour	Yellow
Sheath Material	PVC
Sheath Thickness	0.50 +/-0.05mm
Temperature	-20 to 75 deg C
Tensile Strength	Before Aging: >/= 13.5 MPa
