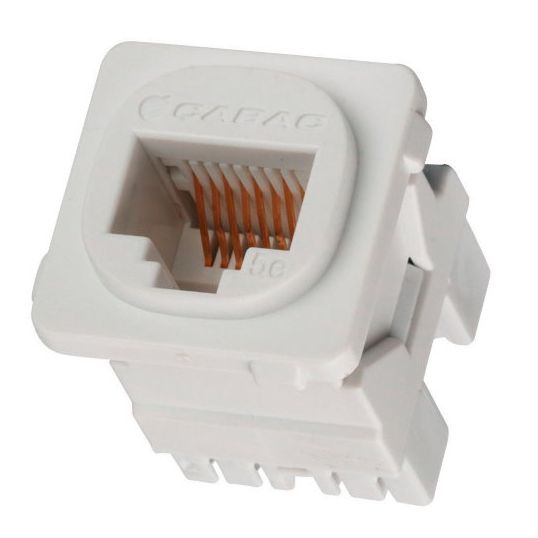

Cabac S-Net Outlet Mechanism Cat5e UTP RJ45 8P8C 568A/B White

Description

Outlet Mechanism Cat5e UTP RJ45, 24-22 AWG, RJ45 8P8C Connector, Cat5e UTP Cable, > 200 MOhm Insulation Resistance, >20 MOhm Contact Resistance, 700 Cycles Durability, IDC Termination, Wiring Scheme: 568A/B, Gold Plated Contact Plating, White,-10 to 60 deg C

Key Specifications

Barcode (EAN-13)	9318674713180
SKU	CAAJ5E/10
Brand	Cabac
Range Name	S-Net Cat5e

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Enhanced Category 5 performance RJ45 8P8C Fits directly into Clipsal wall plates Wiring label for both 568A & 568B wiring formats Punch down with 110 and/or Krone style tool Gold plated contacts for superior performance Clipsal plate mount
Standard Pack Size	10
UNSPSC Class	39121400
UOM	EA
Vendor Product	J5E/10
Cable Type	Cat5e UTP
Colour	White
Conductor Size	24-22 AWG
Connector	RJ45 8P8C
Contact Plating Material	Gold Plated
Contact Resistance	>20 MOhm
Durability	700 Cycles
Insulation Resistance	> 200 MOhm
Temperature	-10 to 60 deg C
Termination Type	IDC
Wiring Scheme	568A/B
