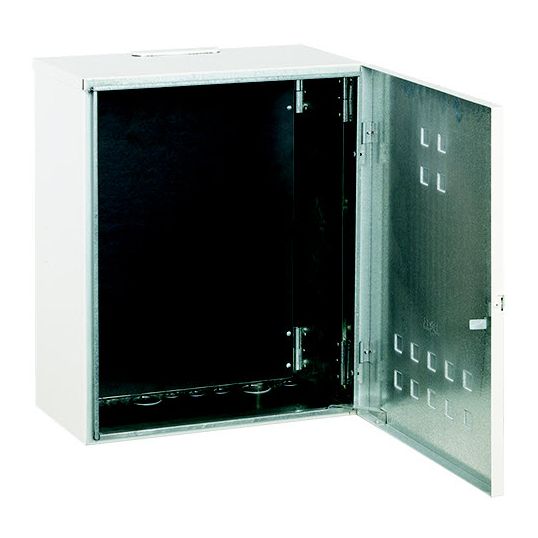

B&R Meter Box South Australia W485mm H600mm D265mm Steel Galvanised To Suit Type 1 and 2 Metering

chevron-left
loader
Loading...

Description

chevron-down
Meter Box South Australia, Service Facilities: NO DIN, 600mm Height, 485mm Width, 265mm Depth, 550mm Panel Height, 430mm Panel Width, IP23, For Use With: Type 1 and 2 Metering, Steel, RAL 7035, Galvanised

Key Specifications

chevron-down
Barcode (EAN-13)
9321228037731
SKU
B&R1FPS
Brand
B&R
Product Type
Meter Boxes Domestic

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Designed for both single and multi-phase installations
  • Suitable for domestic and light commercial installations
  • Capacity to recess into a brick wall with ease
  • Provision to fit ES coin lock to door of the enclosure
  • Manufactured from 1mm galvanised steel to Z275
  • Powder coated light grey RAL7035
Standard Pack Size 1
UNSPSC Class 39121100
UOM EA
Vendor Product 1FPS
Colour RAL7035 Grey
Enclosure Depth 265mm
Enclosure Height 600mm
For Use With Type 1 and 2 Metering
Enclosure Width 485mm
Finish Galvanised
IP Rating IP23
Material Steel
Panel Height 550mm
Panel Width 430mm
Service Facilities NO DIN
