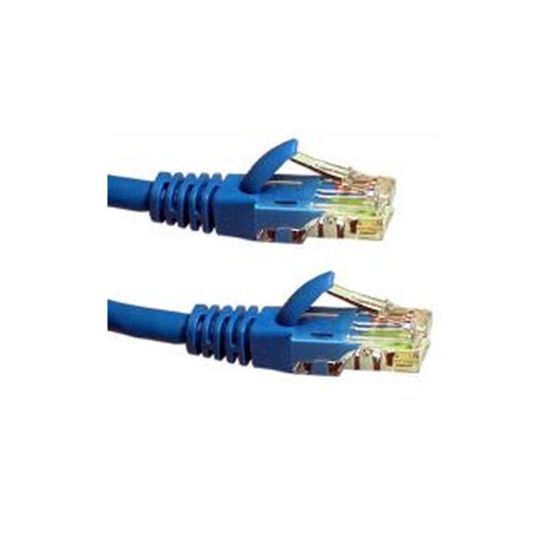

Access Communications UTP Patch Cord Cat6 RJ45-RJ45 4 Pair 24AWG FR-PVC Blue 5m

$Access Communications\ACC_W275.jpg$

Description

UTP Patch Cord Cat6, Connector A: RJ45 Plug, Connector B: RJ45 Plug, 4 Pair, 24 AWG Conductor, Stranded Conductor, 5.5mm (+/-0.3mm) OD, 5 mtr Cord Length, Attenuation: 2.4-39.4 dB (+/-15% dB), 300 V, 250 MHz, Insulation Resistance: > 200 MOhm at 20 deg C Min, Wiring Scheme: T568A, Oxygen-Free Bare Copper Conductor, SPE Insulation, FR-PVC Sheath, Contact Material: Gold Plated, Blue Sheath, 75 deg C

Key Specifications

SKU	ACCW2755BLU
Brand	Access Communications
Range Name	Datamaster
Product Type	Cat6 Patch Cord

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Cat6 cable is standard for Gigabit Ethernet and other network protocols that are backward compatible with Cat5/5e and Cat3 standards Made from 100% Oxygen-Free Copper 4 twisted pairs (multi-stranded) T568A colour code RJ45-RJ45 connectors with Snagless Boots Injection-moulded connectors ensure the highest quality and outstanding strain relief Supplied in Datamaster Poly Hang-cell bags
Standard Pack Size	1
UNSPSC Class	43223300
UOM	EA
Vendor Product	W2755BLU
Conductor Material	Oxygen-Free Bare Copper
Conductor Size	24 AWG
Connector A	RJ45
Connector B	RJ45
Contact Material	Gold Plated
Cord Length	5 mtr
Frequency Bandwidth	250 MHz
Insulation Material	SPE
Insulation Resistance	> 200 MOhm at 20 deg C Min
Outside Diameter	5.5mm (+/-0.3mm)
Pair Count	4 Pair
Sheath Colour	Blue
Sheath Material	FR-PVC
Temperature	75 deg C
Voltage	300 Volt
Wiring Scheme	T568A
