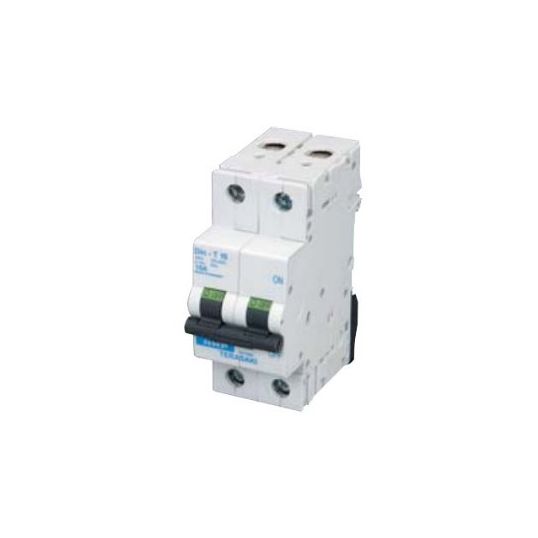

Terasaki Miniature Circuit Breaker C Curve 10Amp 6 kA 2 Number of Poles 2Module DIN Rail Mount

Description

Miniature Circuit Breaker C Curve, 415 Volt AC/500 Volt DC, 10 Amp, 50/60 Hz, 6 kA Interrupt Capacity, 2 Module 36 mm, 2 Pole, 4.5 Nm Tightening Torque, 1000 Cycles Electrical Life, IP20/40, DIN Rail Mounting, 25 to 55 deg C, 86 mm Height, 36 mm Width, 76 mm Depth

Key Specifications

Barcode (EAN-13)	5413656757429
SKU	TERDTCBDC210C
Brand	Terasaki
Range Name	Din-T DC
Product Type	Mini Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	High speed and rapid arc quenching technology ensuring the highest level of protection is provided Free tripping mechanism even if toggle is locked or sealed ON or OFF
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	DTCBDC210C-NLA
Current	10 Amp
Depth	76 mm
Electrical Life	1000 Cycles
Frequency	50/60 Hz
Height	86 mm
Interrupt Capacity	6 kA
IP Rating	IP20/40
Modules	2 Module 36 mm
Mounting Method	DIN Rail
Number Of Poles	2 Pole
Temperature	25 to 55 deg C
Tightening Torque	4.5 Nm
Voltage	415 Volt AC/500 Volt DC
Width	36 mm
